參考文獻:Revell, J.D. ,Prydz, R.A., and Hays, A.P., Experimental Study of Airframe Noise vs.Drag Relationship for Circular Cylinders ,"Lockheed Report 28074, Feb.1977. Final Report forNASA Contract NAS1-14403;

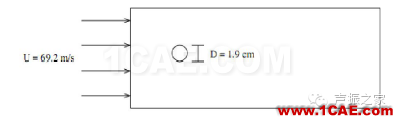

計算模型:二維圓柱繞流

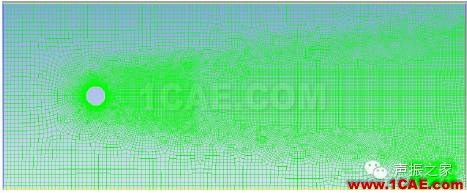

計算網格:33223 個Cell
物理模型1:LES 大渦模擬
Air: Density 1.225
Viscous Model: LES Smagorinsky-Lilly
P-V Coupling: Fractional Step
Spatial-Discretization: Green-Gauss Node Based, PRESTO, Bounded Central Differencing
Transient Formulation: Second Order Implicit, Non-Iterative Time-Advancement
Time Step Size: 5E-6
Total Time: 0.03s
物理模型2:SAS 分離渦模擬
Air: Density 1.225
Viscous Model: Scale-Adaptive Simulation
P-V Coupling: Fractional Step
Spatial-Discretization: Green-Gauss Node Based, PRESTO, Bounded Central Differencing,
Second Order Upwind
Transient Formulation: Second Order Implicit, Non-Iterative Time-Advancement
Time Step Size: 5E-6
Total Time: 0.03s

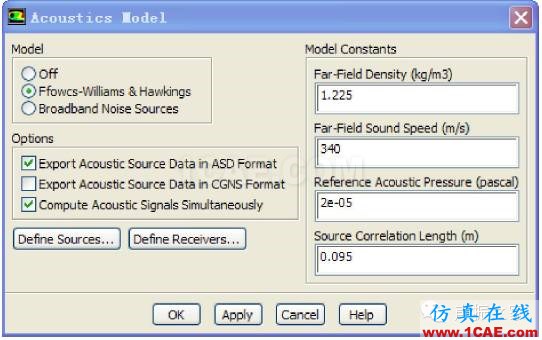

Acoustics Model: Ffowcs-Wiliams & Hawkings
計算結果比較:

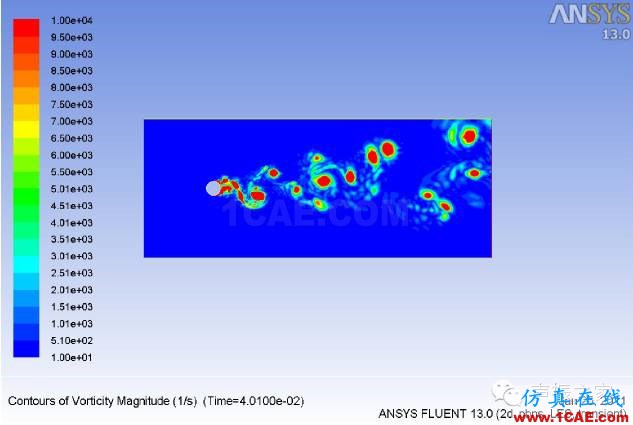

1)渦量分布(10[1/s]-10000[1/s])

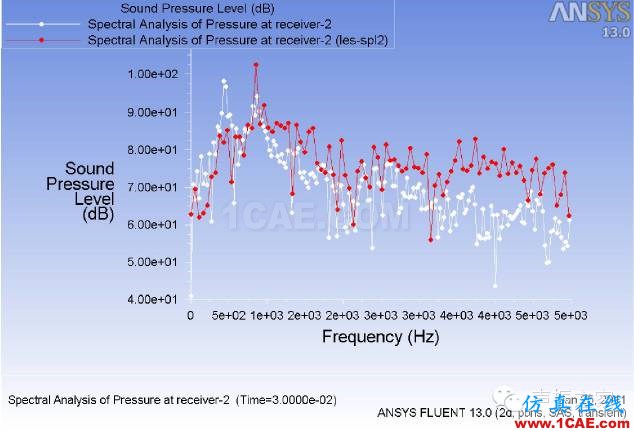

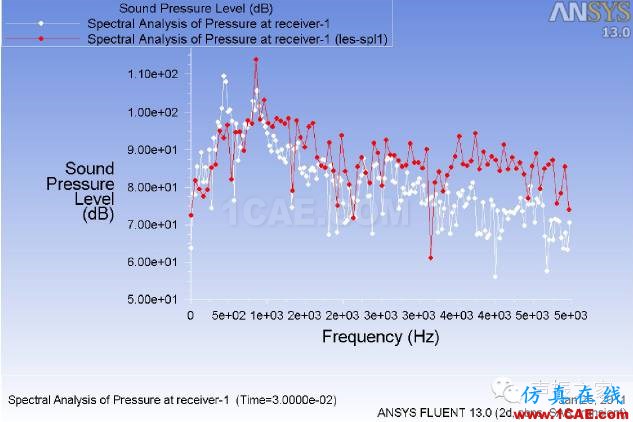

2)監測位置聲壓-頻率曲線比較
3)聲壓計算和實驗值的比較
4)結論
通過比較計算可以看出,SAS 模型和LES 模型計算結果非常接近。
本文摘錄自網絡資源《ANSYS Fluent 氣動噪聲模型使用指南》
